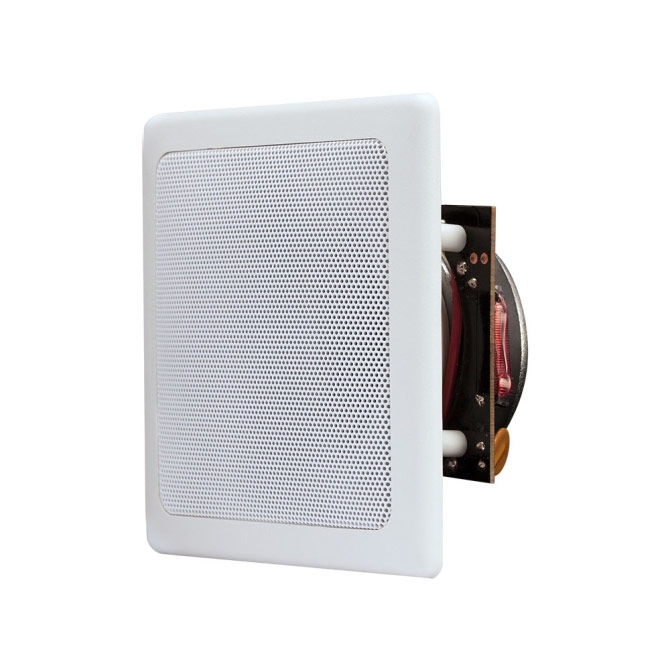

PhaseTech 3" Compact In-Wall Speaker
PhaseTech CI-MM3-II In-Wall Speaker
3 inch Compact, Full-Range In-Wall Speaker. The Spacia CI-MM3-II is designed to fit into a standard double gang box or mud ring, making it simple to install in kitchens, foyers, bathrooms and hallways. The Ci-MM3-II includes self-resetting solid-state PTC protection circuits, which detect when the speaker is being over-driven and lower its volume until it is corrected. The Ci-MM3-II offers outstanding audio despite its micro module size.
Owner's Manual | Tech Sheet | Minumum/Maximum Ceiling Thickness
About PhaseTechColor | White |
---|---|
UPC | 748252173478 |
Manufacturer | Phase Technology |
Manufacturer's Category | Spacia Compact Series |
Depth | 1.9 in / 48.3 mm |
Height | 4.13 in / 104.8 mm |
Width/Diameter | 4.13 in / 104.8 mm |
Shipping Weight | 1 lb / 0.45 kg |
Carton Height | 7 in / 177.8 mm |
Carton Length | 7 in / 177.8 mm |
Carton Width | 7 in / 177.8 mm |
Certifications | CCC, CE, RoHS |
Enclosure Properties | ABS, Infinite Baffle |
Included Accessories | Grille |
Source Inputs | Terminal Strip |
Frequency Response (± 3 dB) | 82 Hz - 22 kHz |
Grille Properties | Almond, Aluminum, Standard-Flange, Powder-Coated, White, Paintable, Snap-Fit |
Nominal Impedance (Ω Ohms) | 8 Ω |
Woofer Driver | 3" Polypropylene w/ NBR Surround |
Recommended Power | 5-60 W |
Sensitivity dB @ 2.83V/1M | 88 dB |
