CI7.3X Master Pack

CI7.3X MP
Find a Reseller
In stock
PhaseTech 8" 3-way Ceiling Speaker Master Pack (4 Units)

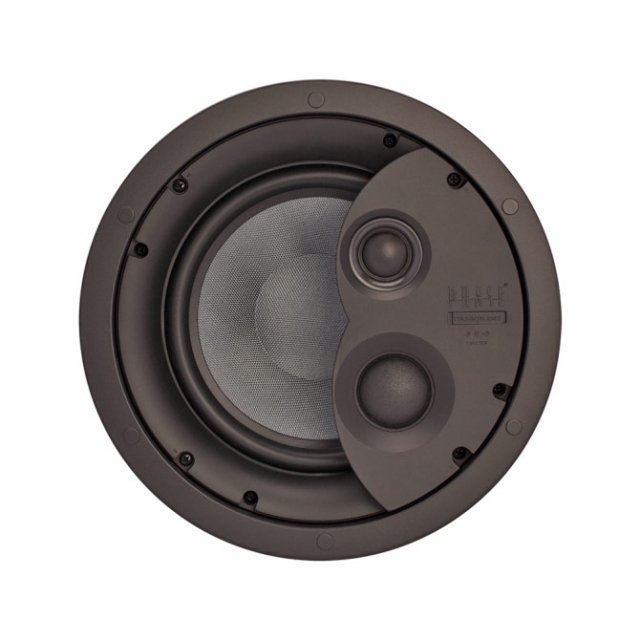

PhaseTech CI7.3X Ceiling Speaker

8 inch 3-Way In-Ceiling Speaker With Micro-Flange Grille. The CI7.3X utilizes the same midrange and tweeter technology found in our critically acclaimed Premier Collection PC9.5 speaker. The CI-7.3X three-way design delivers outstanding reproduction of music and movie soundtracks. Signature audio clarity and balance are immediately noticeable from this upscale, virtually invisible speaker. All CI-X models feature micro flange magnetic grilles, which are paintable. Square grilles are also available for all CI-X in-ceiling models. The CI7.3X is featured in the EMEA and Global Award Winner installation for CEDIA Best Home Theatre Awards. The CI7.3X pairs with Premier Collection's PC3.5 and PC9.5.

Owner's Manual | Tech Sheet | CE Certification | CIX Collection PDF

About PhaseTech
More Information
ColorWhite
UPC644216206506
ManufacturerPhase Technology
Manufacturer's CategoryCI Custom Install Series
Depth5 in / 127 mm
Width/Diameter9.62 in / 244.3 mm
Shipping Weight31.75 lbs 14.4 kg
Carton Height15 in / 381 mm
Carton Length26 in / 660.4 mm
Carton Width13 in / 330.2 mm
Enclosure PropertiesInfinite Baffle
Included AccessoriesGrille, Hole Template
Optional AccessoriesRough-In Bracket (RB22)|Square Grille (CI7X-SG)
Source InputsGold Plated Binding Posts
Cutout Depth5 in / 127 mm
Cutout Width/Diameter9.63 in / 244.5 mm
Frequency Response (± 3 dB)32 Hz - 22 kHz
Grille PropertiesGalvanized, Magnetic, Micro-Flange, Powder-Coated, White, Paintable, Steel
Nominal Impedance (Ω Ohms)8 Ω
Tweeter Driver1" Variable Axis Soft Dome
Midrange Driver1.5" Synthetic Soft Dome
Woofer Driver8" Woven Glass Fiber w/ NBR Surround
Recommended Power15-200 W
Sensitivity dB @ 2.83V/1M92 dB
