CI70X Master Pack

In stock

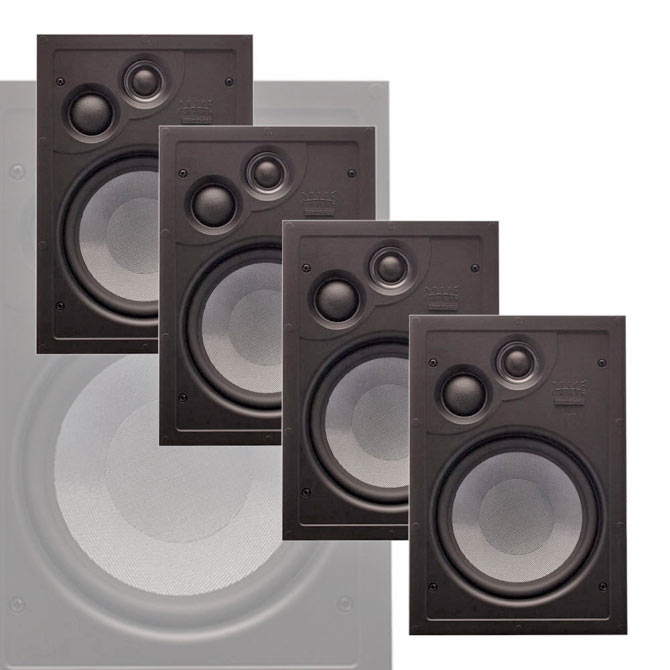

PhaseTech 8" 3-way Ceiling Speaker Master Pack (4 Units)

PhaseTech CI70X Ceiling Speaker

7 inch 3-Way In-Wall Speaker With Micro-Flange Grille. The CI70X utilizes the same midrange and tweeter technology found in our critically acclaimed Premier Collection PC9.5 speaker. The CI70X three-way design delivers outstanding reproduction of music and movie soundtracks. Its patented QuikMount clamping levers, shared with the rest of the rectangular CI Series, mean quick installation and easy replacement or upgrading. A pivoting tweeter can be used to direct high frequencies to your listening area. The grille can be painted to match any room color. The CI70X is featured in the EMEA and Global Award Winner installation for CEDIA Best Home Theatre Awards. The CI70X pairs with Premier Collection's PC3.5 and PC9.5.

Owner's Manual | CE Certification | CIX Collection PDF

About PhaseTech
More Information
ManufacturerPhase Technology
Manufacturer's CategoryCI Custom Install Series
Depth3.75 in / 95.3 mm
Height12.57 in / 319.3 mm
Width/Diameter8.63 in / 219.2 mm
Shipping Weight27.4 lbs / 12.43 kg
Carton Height12 in / 304.8 mm
Carton Length19.75 in / 501.65 mm
Carton Width16 in / 406.4 mm
Enclosure PropertiesInfinite Baffle
Included AccessoriesGrille, Hole Template
Optional AccessoriesRough-In Bracket (RB23)
Source InputsGold Plated Binding Posts
Cutout Width/Diameter7.37 in / 187.3 mm
Frequency Response (± 3 dB)32 Hz - 22 kHz
Grille PropertiesGalvanized, Magnetic, Micro-Flange, Powder-Coated, White, Paintable, Steel
Magnetically BoostedNo
Mounting Depth3.5 in / 88.9 mm
Nominal Impedance (Ω Ohms)8 Ω
Tweeter Driver1" Variable Axis Soft Dome
Midrange Driver1.5" Synthetic Soft Dome
Woofer Driver7" Woven Glass Fiber w/ NBR Surround
Recommended Power10-150 W
Sensitivity dB @ 2.83V/1M89 dB
