CM82-EZS-WH
This item is discontinued.

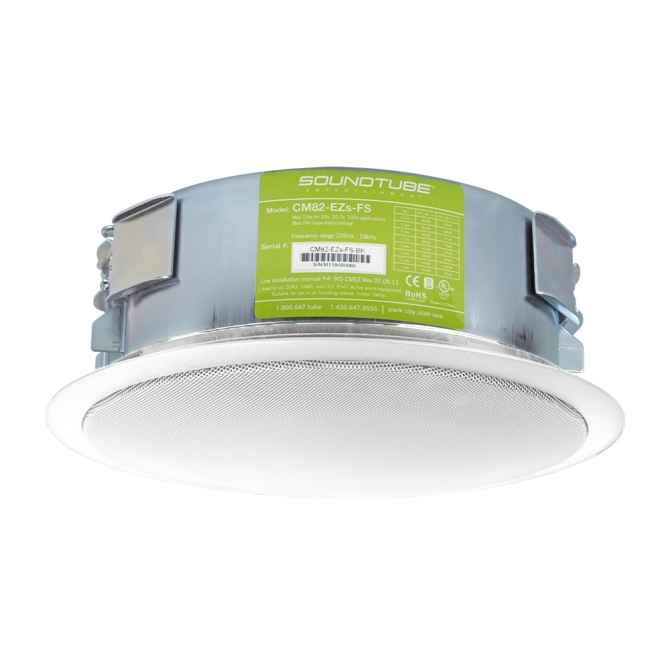

SoundTube 8" Coaxial, Two-Way, In-Ceiling Speaker with Short Can in White
SoundTube 8" Coaxial, Two-Way, In-Ceiling Speaker with Short Can in White
The CM82-EZs is an 8-inch, coaxial, two-way, blind-mount, in-ceiling speaker which delivers true high efficiency and performance across the operating bandwidth. By incorporating an 8-inch polypropylene driver with a butyl rubber surround in a sealed drawn steel backcan, this speaker delivers maximum frequency response (82 Hz 22 kHz, - 10 dB) in an integrated enclosure design. Developed specifically for paging and background music applications where cost, quality and fit are paramount, the CM82-EZs is ideal for hotels, education, hospitals, retail stores, restaurants, airports, churches or boardrooms. Indeed, the entire CM-EZ series is engineered for installations where high efficiency and rapid installation are critical attributes. For applications requiring additional bass response, SoundTube®'s CM1001d-T and SM1001p subwoofers provide true low-end response down to 41 Hz.
About SoundTube
Color | White |
---|---|
UPC | 644216223701 |
Manufacturer | SoundTube |
Manufacturer's Category | CM-EZ Economical In-Ceiling |
Shipping Weight | 9.7 lbs / 4.4 kg |
Carton Height | 5.5 in / 139.7 mm |
Carton Length | 12.75 in / 323.85 mm |
Carton Width | 13 in / 330.2 mm |
Enclosure Properties | ABS Glass Fiber Reinforced, Injection Molded, Sealed |
Enclosure Volume | 350 cu in / 5735.47 cu cm |
Included Accessories | Cover Plate, Grille, Paint Mask |
Optional Accessories | White Grille (GRL-CM6/8EZ-II-WH)|Tile Bridge (AC-CMEZ6/8-TB)|Pre-Construction Bracket (AC-CMEZ6/8-PCB)|Junction Box (AC-CM-EZ-JBOX) |
Source Inputs | #18 AWG Wire Leads |
Backcan Diameter | 9.67 in / 245.6 mm |
Backcan Height | 5.75 in / 146.1 mm |
Coverage Angle (±6dB @ 2kHz) | 40° |
Crossover Frequency | 3.0 kHz |
Cutout Width/Diameter | 10.5 in / 266.7 mm |
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 5.4 and 7.2 |
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.5dB |
Frequency Response (± 3 dB) | 92 Hz - 18 kHz |
Grille Properties | Standard-Flange, Friction-Fit, White, Paintable, Painted, Steel |
Low Frequency Voice Coil | 1 in / 25.4 mm |
Low Pass Crossover | 6 dB per octave 1st order |
Max. Ceiling Thickness | 1.6 in / 40.64 mm |
Max. Continuous Power RMS | 64w |
Max. Program Power | 128 W |
Minimum Impedance (Ω Ohms) | 17.2 Ω |
Minimum Ceiling Thickness | 0.035 in / 0.89 mm |
Network Type: High Pass | 6 dB per octave 1st order |
Nominal Impedance (Ω Ohms) | 16 Ω |
Tweeter Driver | 1" Silk Dome |
Sensitivity dB @ 1W/1M | 89 dB |
Sensitivity dB @ 2.83V/1M | 86 dB |
Tap Selector | Rotary Switch |
Transformer Taps Max. Setting (25V/70.7V/100V) | 8W/64W/64W |
Visible Diameter | 11.75 in / 298.5 mm |
Visible Height | 0.34 in / 8.6 mm |
