CS-6R DVT Master Pack

In stock

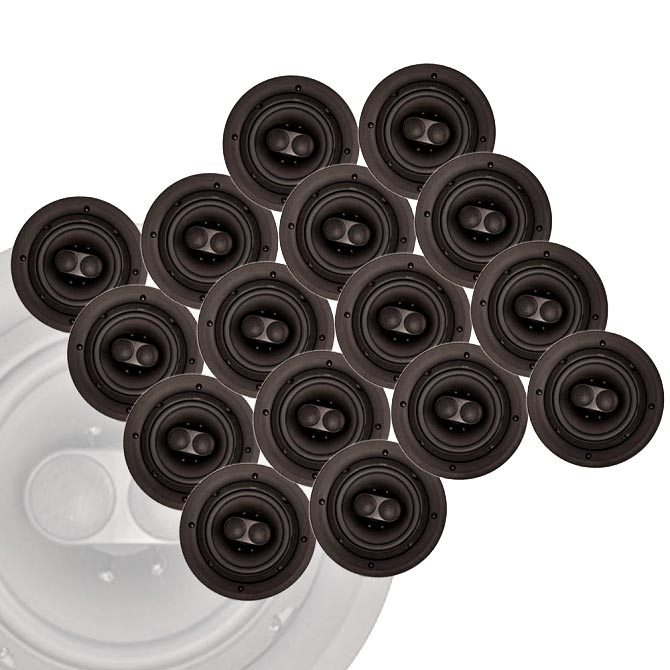

PhaseTech 6.5" Dual Input In-Ceiling Speaker Master Pack (16 Units)

PhaseTech CS-6R DVT In-Ceiling Speaker Master Pack (16 Units)

6.5 inch Coax Dual Voice Coil In-Ceiling Speaker w/ Micro-Flange Grille. The CS6R-DVT model is a single-point stereo, dual voice coil speaker utilizing two .75 inch soft dome tweeters for extended high-end dispersion and a 6.5 inch woofer featuring a polypropylene cone with butyl rubber surround. The CS-6R DVT®'s magnetic micro-flange grille is one of the thinnest on the market, with a bezel that is nearly invisible, which is paintable to blend in with the ceiling. The CS-6R DVT pairs with Phase Velocity's V52, V62, and V5520.

Owner's Manual

About PhaseTech
More Information
ManufacturerPhase Technology
Manufacturer's CategoryCS Professional Series
Depth3.25 in / 82.55 mm
Width/Diameter9.1 in / 231.1 mm
Shipping Weight68.85 lbs / 31.23 kg
Carton Height22.25 in / 565.15 mm
Carton Length21.5 in / 546.1 mm
Carton Width21.5 in / 546.1 mm
Enclosure PropertiesInfinite Baffle
Included AccessoriesGrille, Hole Template
Optional AccessoriesPre-Construction Bracket (RB21 or RB14)
Source InputsMetal Push Binding Posts
Cutout Width/Diameter8.06 in / 204.7 mm
Frequency Response (± 3 dB)50 Hz - 20 kHz
Grille PropertiesFlangeless, Magnetic, Powder-Coated, White, Paintable
Magnetically BoostedNo
Mounting Depth3 in / 76.2 mm
Nominal Impedance (Ω Ohms)8 Ω
Tweeter Driver(2) .75" Soft Domes
Woofer Driver6.5" Coaxial Polypropylene w/ NBR Surround
Recommended Power5-100 W
Sensitivity dB @ 2.83V/1M87 dB
