HP890i-BK
HP890i-BK
In stock

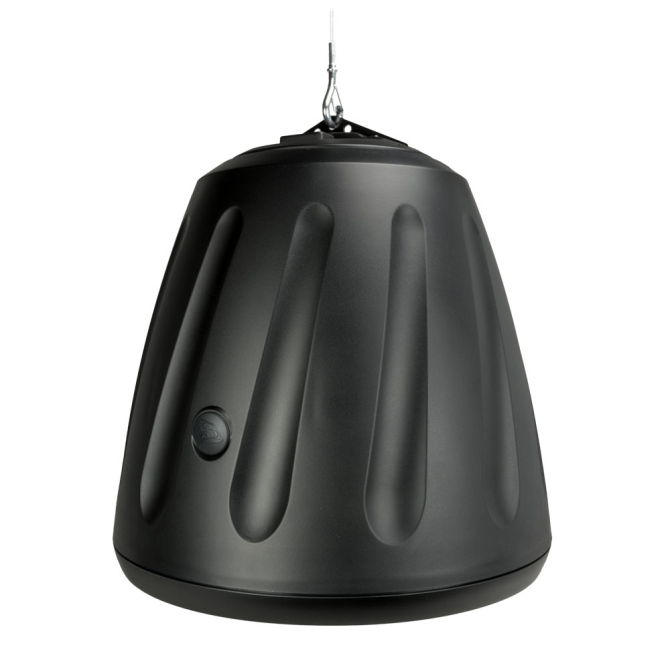

SoundTube 8" 2-way Hanging Speaker in Black
SoundTube HP890i Hanging Speaker in Black
Patented BroadBeam Ring™ waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage. One 8 inch treated fiber woofer and one 1.42 inch compression driver (1.0 inch exit) mounted to a proprietary cast-aluminum baffle and heat sink. High output and 120-watt transformer for the sound reinforcement and PA markets. Patented ZeroReflection™ enclosure technology for optimal sound reproduction and cabinet rigidity. Easy-access five-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position. Includes hanging hardware with galvanized steel cables and integrated SpeedClamp™ self-locking wire grip for fast, easy and secure installation. Also includes Euroblock connector and terminal weather boot. Average sensitivity of 94.0 dB offers high output capabilities and reduced amplification costs. UL 1480 (UEAY) and 2239 (hanging cable) approved.
Owner's Manual | Tech Sheet | Mechanical Drawing | A&E Specs | GLL | EASE 4.0 | EASE 3.0 | CLF 1 | CLF 2 | Revit | DXF | DWG | PDF Drawing | Tap Switch Instructions | UL Certificate
About SoundTube| Color | Black |
|---|---|
| UPC | 752830442986 |
| Manufacturer | SoundTube |
| Manufacturer's Category | HPi High Ceiling Pendant |
| Height | 17.23 in / 437.6 mm |
| Width/Diameter | 14.82 in / 376.4 mm |
| Shipping Weight | 32.15 lbs / 14.58 kg |
| Carton Height | 19.5 in / 495.3 mm |
| Carton Length | 18 in / 457.2 mm |
| Carton Width | 18 in / 457.2 mm |
| Certifications | CE, RoHS, UL1480A, UL2239 |
| Enclosure Properties | ABS Glass Fiber Reinforced, Injection Molded, Ported |
| Enclosure Volume | 1288.3 cu in / 21111.45 cu cm |
| Included Accessories | Euroblock, Hanging Hardware, Safety Cable, Terminal Weather Boot |

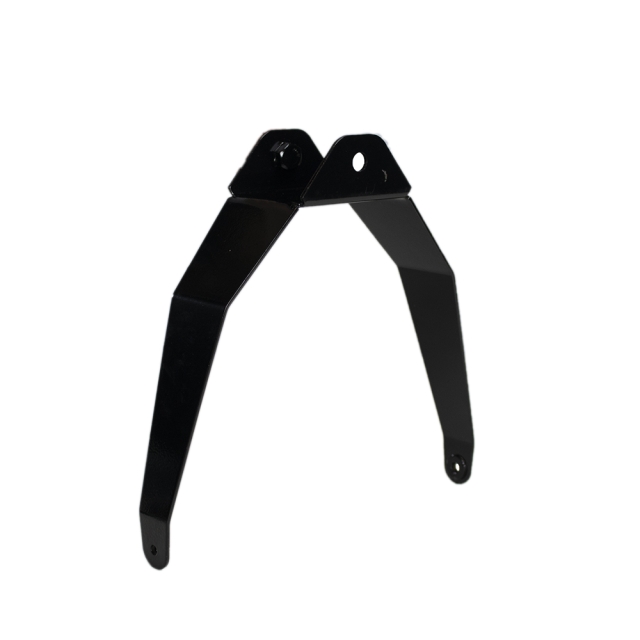

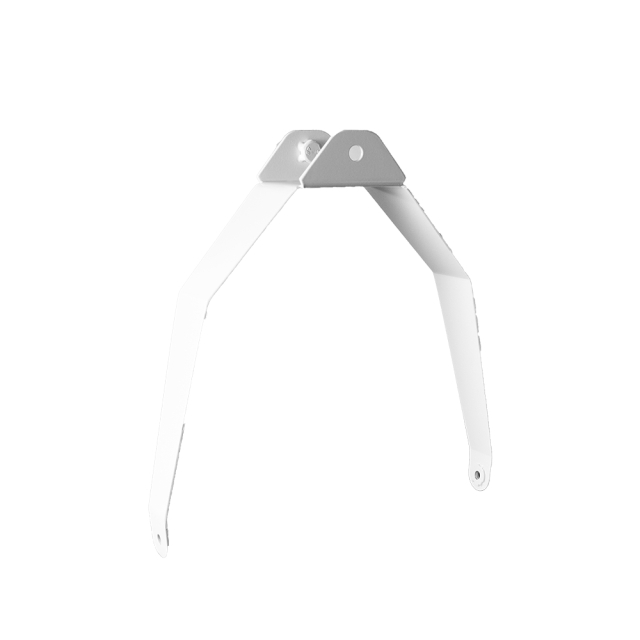

| Optional Accessories | Black Grille (GRL-RS800-BK)|10' Hanging Cable (AC-RS-HH-10)|20' Hanging Cable (AC-RS-HH-20)|50' Hanging Cable (AC-RS-HH-50)|Black Mount Bracket (AC-RS-SM8-BK)|Connector (EUROBLOCK)|Black Weatherboot (WEATHERBOOT-L-BK)|Beam Clamp (AC-BC1)|Forged Eye Bolt (AC-FE1)|Black Split Loom Tubing (AC-SLT-10-BK)|Snap Link (AC-SL1) |
| Source Inputs | 4 Pin 5.08mm Euroblock |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Coverage Angle (±6dB @ 2kHz) | 85° |
| Crossover Frequency | 2.5 kHz |
| Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) | 4.2 and 3.5 |
| Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) | 5.4dB and 5.4dB |
| Frequency Response (± 10 dB) | 65 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 93 Hz - 22 kHz |
| Grille Properties | Powder-Coated, Steel |
| Low Frequency Voice Coil | 1.34 in / 34 mm |
| Low Pass Crossover | 12 dB per octave 2nd order |
| Max. Continuous Power RMS | 125W |
| Max. Program Power | 250 W |
| Minimum Impedance (Ω Ohms) | 5.9 Ω |
| Network Type: High Pass | 12 dB per octave 2nd order |
| Nominal Impedance (Ω Ohms) | 8 Ω |
| Tweeter Driver | 1.38" Titanium Compression Driver w/ Waveguide |
| Woofer Driver | 8" Treated Fiber |
| Sensitivity dB @ 1W/1M | 94 dB |
| Sensitivity dB @ 2.83V/1M | 94 dB |
| Tap Selector | Rotary Switch |
| Transformer Options | 25 / 70.7 / 100 V, 8 Ohm direct |
| Transformer Taps Max. Setting (25V/70.7V/100V) | 15W/120W/120W |
