SoundTube 8" IP-Addressable, Dante Addressable, Speaker in Black

SoundTube IPD-RS82-EZ IP-Addressable Speaker in Black

Dante®-addressable coaxial pendant speaker incorporates ne 203 mm (8.0 in.) coaxial driver with BroadBeam Ring technology for consistently smooth high frequency. Low latency digital audio, power, and control are delivered to the speaker via standard category cable; connection is made on the other end to the STNet-Switch or other PoE / PoE+ switch. May also be powered via a 24V DC barrel connector for non-PoE installations. Configuration and zoning of the speaker are accomplished via software. Includes hanging hardware with galvanized steel cables and hanging bracket for fast, easy and secure installation. Unit may be hung or mounted direct-to-conduit via locking cover plate. Enclosure constructed of injection molded ABS with glasber reinforcement for lasting durability in indoor or outdoor applications. Aluminum grille with protective powder coated finish. Unit ships in eco-friendly, recyclable packaging. Hanging hardware, weather plug, cover plate, and AC-RSEZ-HH-10 are included.

Owner's Manual | Tech Sheet | Applications Guide

About SoundTube
More Information
Manufacturer's Suggested Retail Price$625.00
Manufacturer's CategorySTNet IP-Addressable and Dante Series
Height12.9 in / 327.7 mm
Width/Diameter10.08 in / 256 mm
Carton Height16 in / 406.4 mm
Carton Length15 in / 381 mm
Carton Width15 in / 381 mm
Enclosure PropertiesReinforced ABS
Included AccessoriesAdapter, Cover Plate, Hanging Hardware, Weather Plug, Wire Gland

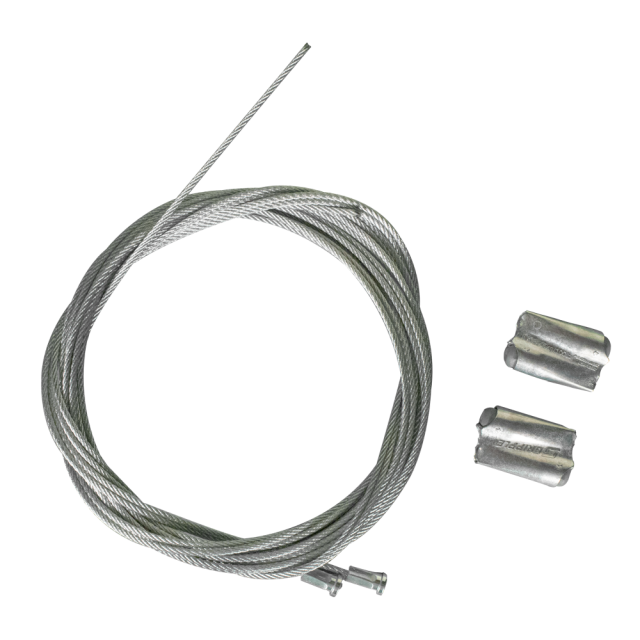

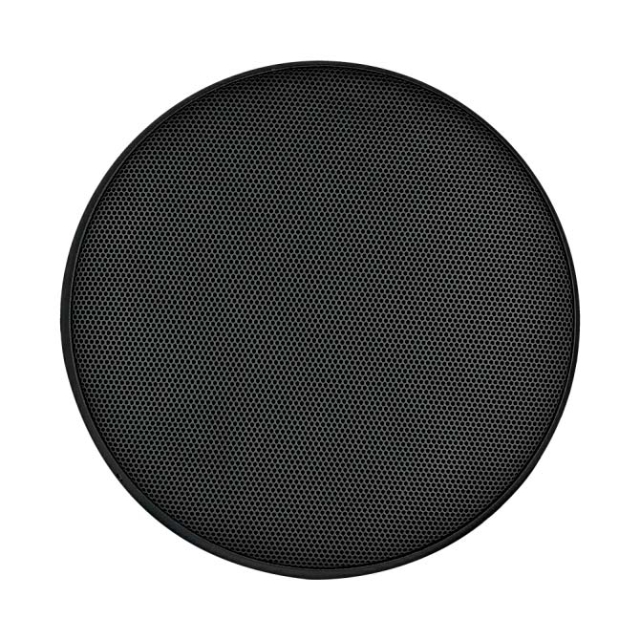

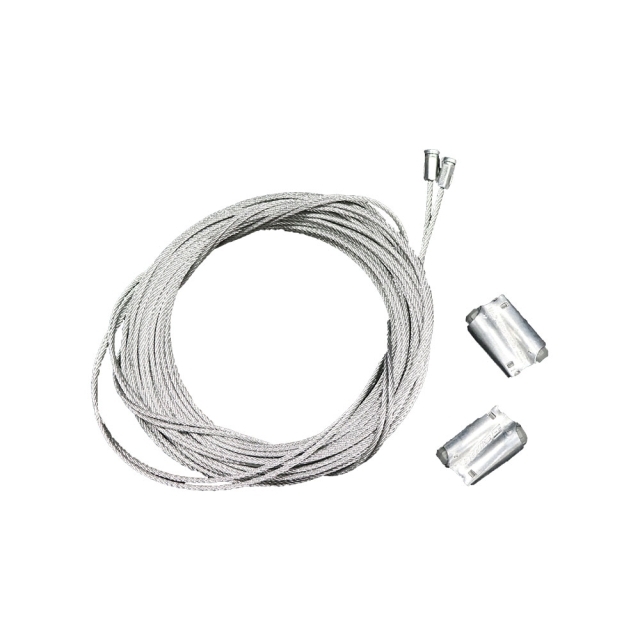

Optional AccessoriesBlack Grille (GRL-RS82-EZ-BK)|10' Hanging Cable (AC-RS-HH-10)|20' Hanging Cable (AC-RS-HH-20)|50' Hanging Cable (AC-RS-HH-50)|Black Mounting Bracket (AC-RS-SM5-BK)|Beam Clamp (AC-BC1)|Forged Eye Bolt (AC-FE1)|Black Split Loom Tubing (AC-SLT-10-BK)|Snap Link (AC-SL1)
Shipping Weight13.55 lbs / 6.15 kg
Crossover Frequency2.5 kHz
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)6.7 and 6.0
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)6.7db and 7.8dB
Frequency Response (± 10 dB)80 Hz - 22 kHz
Frequency Response (± 3 dB)100 Hz - 22 kHz
Grille PropertiesAluminum, Powder-Coated
Low Frequency Voice Coil1 in / 25.4 mm
Low Pass Crossover6 dB per octave 1st order
Magnetically BoostedNo
Max. Continuous Power RMS64 W
Max. Program Power128 W
Network Type: High Pass6 dB per octave 1st order
Tweeter Driver1" Silk Dome w/ BroadBeam Ring®
Woofer Driver8" Polypropylene Cone w/ Butyl Rubber Surround
Sensitivity dB @ 1W/1M92 dB
Sensitivity dB @ 2.83V/1M89 dB
Tap SelectorRotary Switch
