SA202-II-RDT Amplifier with Power Supply
SoundTube Class AB Mini Amplifier with 15 V Power Supply and 20 W per channel output at 4 Ohms.

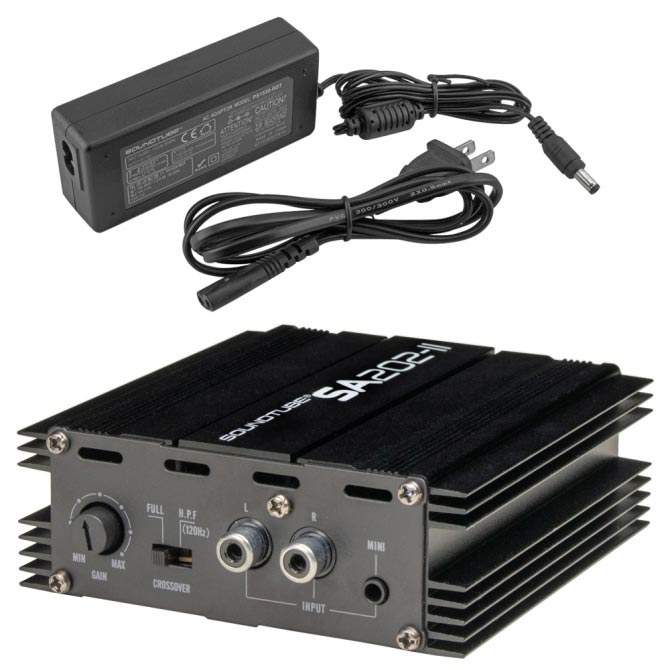

SA202-II-RDT SoundTube Class AB Mini Amplifier with Power Supply
The SA202-II-RDT amplifier is an ultra-compact, 2-channel amplifier with extra heat sink surfaces for extended duty at full power. Rated at 20 watts per channel output at 4 Ohms with max gain of 35 dB. Dual RCA, stereo mini jack, and high-level inputs. Power inputs include either three-pin Euroblock or barrel connector. 12-volt trigger for automatic on/off functions when source power is detected. Signal to noise ration is 92dB (100Hz, 12dB/octave, 4 Ohm, A-Weighted). Inputs: Stereo mini unbalanced, high level, RCA stereo, 12V trigger. Mounting hardware included and adapts to pole, surface or security attachment installations. Includes a 15-volt, 3-amp power supply.
Power per channel @ < 10 % THD: 20 watts (4 ohm stereo) 10 watts (8 ohm stereo
Power per channel @ < 1 % THD: 15 watts (4 ohm stereo) 8 watts (8 ohm stereo)
Owner's Manual | Tech Sheet | Mechanical Drawing | SA202 without pole/surface mount | SA202 with pole/surface mount | A&E Specs | DXF | DWG | PDF Drawing | CE Certification
About SoundTubeColor | Black |
---|---|
UPC | 644216202805 |
Manufacturer | SoundTube |
Manufacturer's Category | Amplifier |
Depth | 4.86 in / 123.44 mm |
Height | 1.43 in / 36.2 mm |
Width/Diameter | 3.98 in / 101.09 mm |
Shipping Weight | 1.55 lbs / 0.7 kg |
Carton Height | 1.75 in / 44.45 mm |
Carton Length | 5.75 in / 146.05 mm |
Carton Width | 4.5 in / 114.3 mm |
Certifications | CE, RoHS |
Included Accessories | 3-Pin Euroblock, 4-Pin Euroblock, Mounting Hardware, Pole/Surface Mount Adapter, Power Supply |
Optional Accessories | Rack Mount Adapter (AC-SA202-RMA)|Power Supply (PS1530-RDT)|UK Power Cord (AC-PSCORD-UK)|EU Power Cord (AC-PSCORD-EU)|China Power Cord (AC-PSCORD-CHINA) |
TAA Compliant (Trade America) | No |
BAA Compliant (Made in USA) | No |
Input Impedance | 6K Ω |
Output Type | Euroblock |
Voltage Gain | 35 dB |
Frequency Response (± 3 dB) | 20 Hz - 20 kHz (+/- 0.1 dB) |
