SM1001 Subwoofer

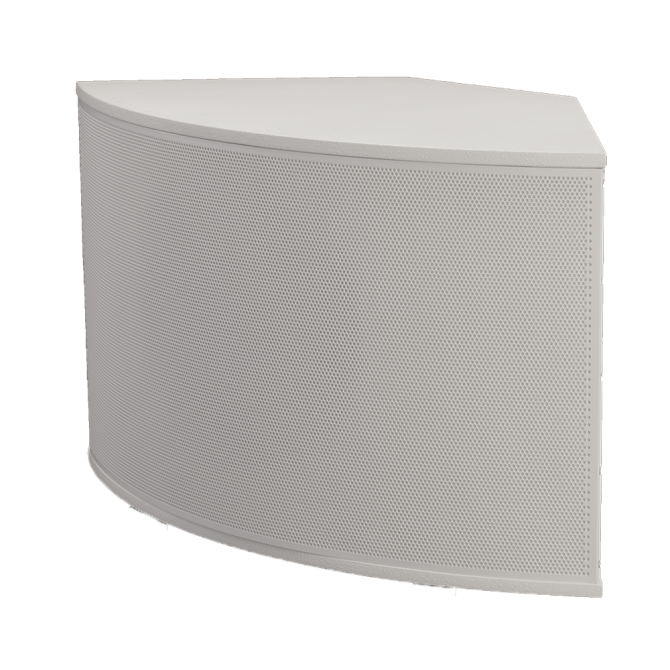

SoundTube SM1001 Subwoofer in White

The SM1001 is a 10” subwoofer with a passive radiator to generate deep, high output bass response. The SM1001 uses a proprietary 10-inch high-excursion, ultra-long throw mica-graphite polypropylene driver and a downward-firing bass radiator. The efficient long throw designs are superbly linear, making the SM1001 an ideal complement to any music system. The driver is attached to a 1.5-inch MDF baffle to eliminate cabinet distortion The SM1001 is a great addition to background and foreground audio installations where high-quality, true bass response and rapid installation are critical. Aerobic rooms, retail stores, restaurants, nightclubs, bars, theme parks, arenas, ballrooms, and churches are all ideal fits for this subwoofer.

The flexible SM1001 delivers crystal-clear bass and unparalleled low frequency coverage from a ceiling, wall, corner, hanging or free standing. When powered by the P350 high-current amplifier, the subwoofer provides a peak output of 116 dB at 1 meter. Sensitivity at 1m and 1W is 88 dB SPL. Housed in a 12.5” D x 24.5” W x 15.5” H cabinet with legs (14” H without legs), the made-in-the-USA subwoofer weighs 29.1 lbs. and is available in white and black.

Proudly Made in America.

Owner's Manual |  Tech Sheet |  Mechanical Drawing |  A&E Specs |  PDF Drawing |  DWG |  Cut Sheet
