XT Spyke Pole Mount Green

XT-SPYKE-PM-GN
Find a Reseller
Out of stock
SoundTube Outdoor Line Array Pole Mount Speaker in Green This product is permanently out of stock.

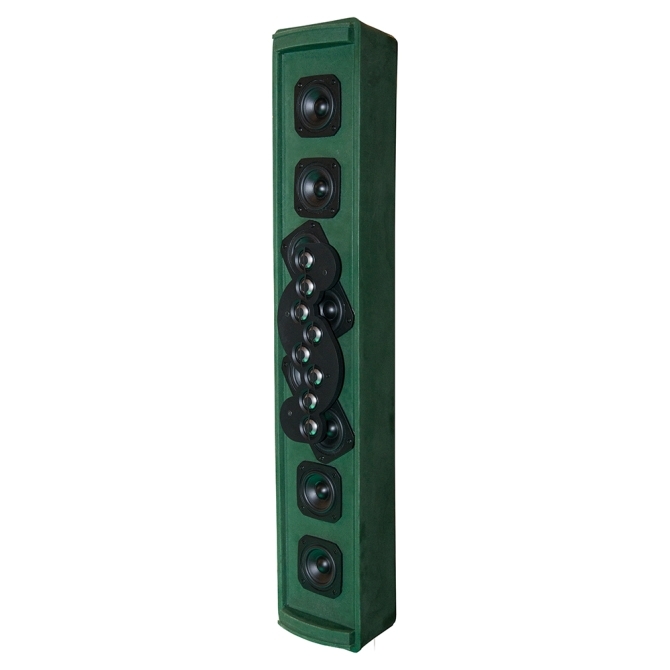

SoundTube Outdoor XT-Spyke Pole Mount Speaker in Green

The SoundTube XT-Spyke is not a typical line array column loudspeaker. Its advanced LAPS (Line Array-Point Source) 2-way design provides a very short near-field extent and robust far-field performance. The XT-Spyke is also UV resistant, scratch resistant, chlorine resistant, and weather resistant with professional-grade components for long-lasting performance and durability. Frequency tapering of low and high frequency pass bands allow the XT-Spyke to maintain a more consistent ratio of array height to radiated wavelength, ensuring a stable vertical beamwidth that out performs many other single box line arrays. Featuring eight 3.0-inch woofers and eight 1-inch high frequency drivers for extremely smooth high frequency response, the XT-Spyke achieves superb coverage in an enclosure measuring only 37.37" x 6.80" x 5.50" and includes pole mounting options.

Owner's Manual | Tech Sheet |  GLL |  A&E Specs

About SoundTube
More Information
ColorGreen
UPC752830447080
ManufacturerSoundTube
Manufacturer's CategoryLA Line Array
Height37.38 in / 949.5 mm
Width/Diameter6.8 in / 172.7 mm
Shipping Weight26.15 lbs / 11.86 kg
Carton Height8 in / 203.2 mm
Carton Length43.75 in / 1111.25 mm
Carton Width10.75 in / 273.05 mm
CertificationsCE, RoHS
Included AccessoriesMounting Hardware
Optional Accessories120W Transformer (SPYKE-XFMR)
Source InputsSpeakON
Crossover Frequency2.4 kHz
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)9.0 and 12.1
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)12.8dB and 16.2dB
Frequency Response (± 10 dB)65 Hz - 22 kHz
Frequency Response (± 3 dB)100 Hz - 20 kHz
Grille PropertiesStainless Steel
Low Pass Crossover12 dB per octave
Max. Continuous Power RMS150W
Max. Program Power300 W
Minimum Impedance (Ω Ohms)8 Ω
Mounting Depth5.5 in / 139.7 mm
Network Type: High Pass18 dB per octave
Nominal Impedance (Ω Ohms)8 Ω
Tweeter Driver(8) 1" Aluminum Dome
Woofer Driver(8) 3" Polypropylene
Sensitivity dB @ 1W/1M92 dB
Sensitivity dB @ 2.83V/1M92 dB
Transformer Options25 / 70.7 / 100 V
Transformer Taps Max. Setting (25V/70.7V/100V)15W/120W/120W
