IPD-Hub 2 DSP Amplifier

IPD-HUB 2
Find a Reseller
In stock

Provides PoE and IP-based audio solutions for use in multi-zone applications utilizing passive speakers. The IPD-Hub 2 amplifier features local and Dante inputs providing unprecedented network control for commercial audio in numerous applications without the need for a traditional DSP.

SoundTube IPD Hub 2 Amp

The IPD-Hub 2 DSP amplifier gives designers and installers an IP-based alternative to traditional 70V/100V distributed audio systems in small to midsize applications. The IPD-Hub 2 utilizes a Dante infrastructure for flexible audio distribution. The amp is complete with local and Dante inputs and local and network control to address requirements for commercial audio connectivity in numerous scalable systems such as retail, bar, restaurants, hospitality, spas, education facilities, and more.

Output power with 40 W PoE is 12 W per channel.

Included accessory: AC-HUB2-CBL-RDL RDL Adapter Cable

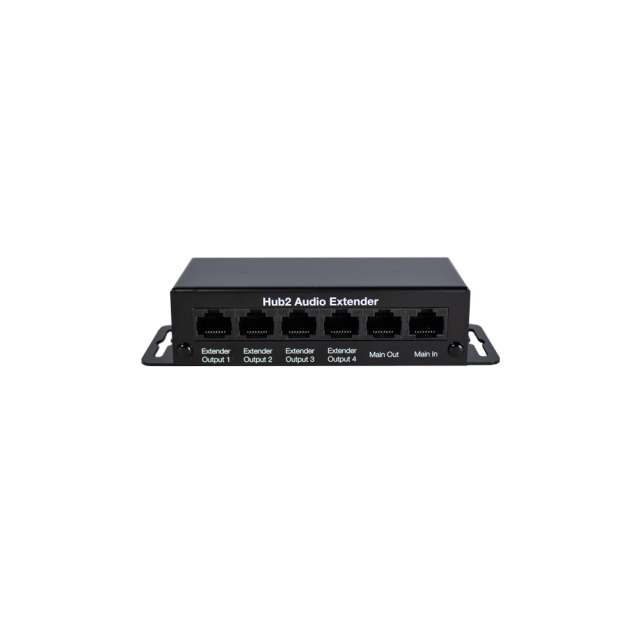

Owner's Manual |  Software Configuration Manual |  Tech Sheet |  Extender Box Instructions |  RDL Cable Instructions |  STNet Brochure |  Restaurant Diagram |  Classroom Diagram |  STNet/Dante Firmware Download


About SoundTube
More Information
ColorBlack
UPC644216223404
ManufacturerSoundTube
Manufacturer's CategorySTNet IP-Addressable and Dante Series
Depth6 in / 152.4 mm
Height1.75 in / 44.45 mm
Width/Diameter8 in / 203.2 mm
Shipping Weight7.71 lbs / 3.5 kg
CertificationsCE, UL60065, ETL-C/US
TAA Compliant (Trade America)No
BAA Compliant (Made in USA)No
Input Type2 x RJ45, 1 Dante, 1 Axiom
Input PowerPoE, PoE+, 40W PoE, 24V DC Power Supply
Output Type2 Channel Phoenix
Output Power12W per Channel @ 40W PoE
Speaker Output(2) x 8 Ω or (4) x 16 Ω speakers
