IPD-XT850-GN
IPD-XT850-GN
In stock
IP-Addressable 8" 2-way Outdoor Speaker System in Green
SoundTube 8" 2-Way Outdoor IPD-XT850 Speaker System in Green
The SoundTube IPD-XT850 is a premium 2-way outdoor loudspeaker IPD solution for outdoor installations requiring high-performance sound in a durable speaker design. The IPD-XT850 is UV resistant, scratch resistant, chlorine resistant, and weather resistant with professional-grade components for long-lasting performance and durability. It is designed for full-range background and foreground music as well as paging. The speaker's sealed, in-ground enclosure design delivers true low end response (38 Hz, ±10 dB) and optimal off-axis performance. The IPD-XT850 also includes theft resistant mounting hardware.
Note: SoundTube IPD speakers are NOT compatible with PoE++. 30W PoE maximum (or 40W maximum with STNet Switch II)
Owner's Manual | Tech Sheet | Mechanical Drawing | A&E Specs | Revit | DXF | DWG | PDF Drawing | GLL | CLF 2 | Applications Guide | STNet Control Center Software User Manual
About SoundTube| Color | Green |
|---|---|
| UPC | 644216222100 |
| Manufacturer | SoundTube |
| Manufacturer's Category | STNet IP-Addressable and Dante Series |
| Height | 16.42 in / 417.1 mm |
| Width/Diameter | 14.17 in / 359.9 mm |
| Shipping Weight | 21.60 lbs / 9.8 kg |
| Carton Height | 19 in / 482.6 mm |
| Carton Length | 16.25 in / 412.75 mm |
| Carton Width | 16.25 in / 412.75 mm |
| Certifications | IP55, RoHS, UL60065 |
| Enclosure Properties | Roto-Molded Polyethylene Plastic |
| Included Accessories | Anti-Theft Bracket, Weatherproof Strain Relief |

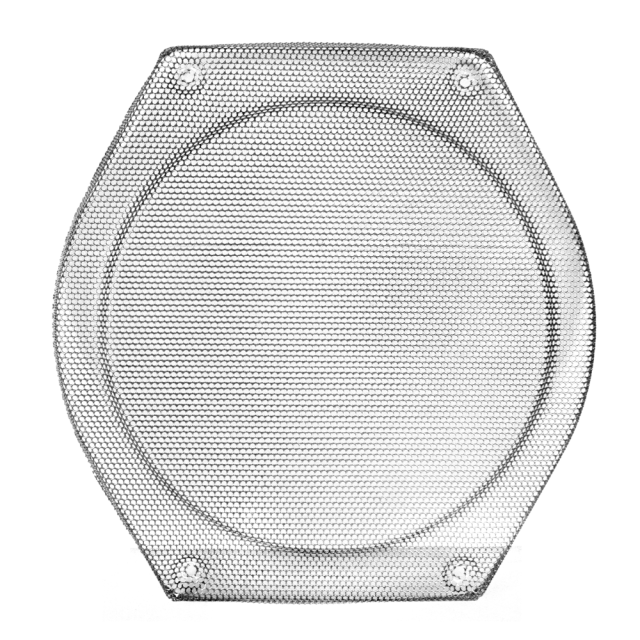

| Optional Accessories | Anti-Theft Bracket (ATD-XT) | Grille (GRL-XT8) | Tap Switch Cover (CVR-XT-TAPSW) |
| Source Inputs | RJ45 Ethernet Port |
| IP Rating | IP55 |
| TAA Compliant (Trade America) | Yes |
| BAA Compliant (Made in USA) | No |
| Coverage Angle (±6dB @ 2kHz) | 360° Horizontal / 40° Vertical |
| Crossover Frequency | 3.0 kHz |
| Frequency Response (± 10 dB) | 38 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 51 Hz - 10 kHz |
| Grille Properties | Powder-Coated, Weatherproof, Stainless Steel |
| Low Frequency Voice Coil | 1.26 in / 32 mm |
| Low Pass Crossover | 12 dB per octave, 2nd order |
| Max SPL @ 1M | 101 dB |
| Network Type: High Pass | 12 dB per octave, 2nd order |
| Tweeter Driver | 1" Convex Aluminum w/ BroadBeam® Waveguide |
| Woofer Driver | 8" Polypropylene Cone w/ Butyl Rubber Surround |
| Sensitivity dB @ 1W/1M | 85 dB |
| Sensitivity dB @ 2.83V/1M | 88 dB |
