XT850-SS

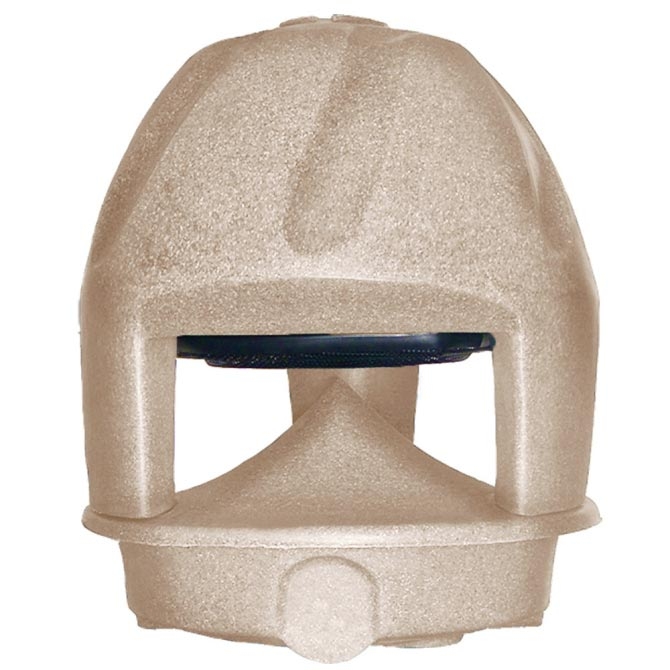

SoundTube Outdoor XT850 Speaker System in Sandstone
The SoundTube XT850 is a premium 2-way outdoor loudspeaker solution for installations requiring high-performance sound in a durable speaker design. Not only is it UV resistant, scratch resiatant, chlorine resistant, and weather resistant with professional-grade components for long-lasting performance and durability, the XT850 is designed for full-range back-ground and foreground music as well as paging. The speakers sealed, in-ground enclosure design delivers true low end response (38 Hz, 10 dB) and optimal off axis performance. The XT850 includes theft resistant mounting hardware and a weatherproof 5-position tap switch for 25/70.7/100 Volt applications with transformer bypass position. IP-Rating: IP55.
Owner's Manual | Tech Sheet | Mechanical Drawing | A&E Specs | Revit | DXF | DWG | PDF Drawing | GLL | CLF 2 | Tap Switch Instructions | UL Certificate
About SoundTube| Color | Sandstone |
|---|---|
| UPC | 752830444881 |
| Manufacturer | SoundTube |
| Manufacturer's Category | XT Extreme Weather Outdoor Series |
| Height | 16.42 in / 417.1 mm |
| Width/Diameter | 14.17 in / 359.9 mm |
| Shipping Weight | 21.60 lbs / 9.8 kg |
| Carton Height | 19 in / 482.6 mm |
| Carton Length | 16.25 in / 412.75 mm |
| Carton Width | 16.25 in / 412.75 mm |
| Certifications | CE, IP55, RoHS, UL1480A |
| Included Accessories | Anti-Theft Bracket, Weatherproof Strain Relief, Wire Nuts |
| Optional Accessories | Anti-Theft Bracket (ATD-XT)|Grille (GRL-XT8)|Tap Switch Cover (CVR-XT-TAPSW) |
| IP Rating | IP55 |
| TAA Compliant (Trade America) | Yes |
| BAA Compliant (Made in USA) | No |
| Crossover Frequency | 3.0 kHz |
| Frequency Response (± 10 dB) | 38 Hz - 22 kHz |
| Frequency Response (± 3 dB) | 51 Hz - 10 kHz |
| Grille Properties | Powder-Coated, Weatherproof, Stainless Steel |
| Low Frequency Voice Coil | 1.26 in / 32 mm |
| Low Pass Crossover | 6 dB per octave 1st order |
| Max. Continuous Power RMS | 100W |
| Max. Program Power | 200 W |
| Minimum Impedance (Ω Ohms) | 3.7 Ω |
| Network Type: High Pass | 6 dB per octave 1st order |
| Nominal Impedance (Ω Ohms) | 4 Ω |
| Tweeter Driver | 1" Aluminum Dome |
| Woofer Driver | 8" Polypropylene Cone w/ Butyl Rubber Surround |
| Sensitivity dB @ 1W/1M | 85 dB |
| Sensitivity dB @ 2.83V/1M | 88 dB |
| Transformer Options | 25 / 70.7 / 100 V, 4 Ohm direct |
| Transformer Taps Max. Setting (25V/70.7V/100V) | 8W/64W/64W |
