RS31-EZ-T-BK

$140.00
In stock
SKU
RS31-EZ-T-BK

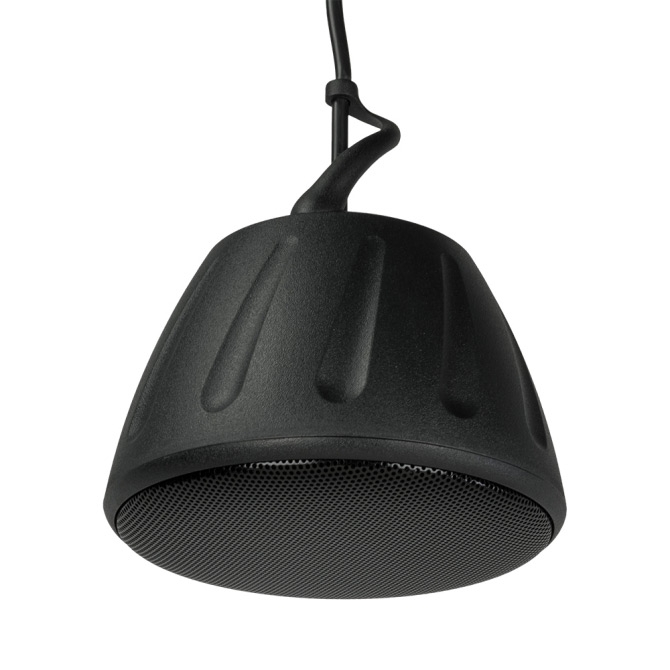

SoundTube 3" Hanging Speaker in Black with Transformer

SoundTube RS31-EZ-T Hanging Speaker with added Transformer in Black

The RS31-EZ-T is a premium full-range 3 inch pendant-mount speaker, with a polypropylene driver and butyl rubber surround and includes a 20-watt transform (transformer does not include 8 ohm bypass). The RS31-EZ incorporates the ultra-low profile ZeroReflection ABS enclosure (4.35 inch diameter by 4.35 inch height without stabilizing arm) and a 10ft length of speaker signal/hanging cable for on-ceiling applications. The RS31-EZ-T also includes a ceiling cap with a diameter of 5" and a middle depth of 2". The mounting plate arms inside the cover measure 4.75" x 4.5" and the transformer is 1.125" x 1.625" with a depth of 1.5". The speaker components have been weatherized for indoor/outdoor applications. Mounting element, cover plate, and 10ft speaker signal/hanging cable are included. Includes a 20-watt transformer. Transformer does not include 8 ohm bypass.

Owner's Manual | Tech Sheet | Mechanical Drawing |  A&E Specs | CE Certification | UL Certificate

About SoundTube
More Information
ColorBlack
Manufacturer's Suggested Retail Price$140.00
UPC752830443181
ManufacturerSoundTube
Manufacturer's CategoryRS-EZ Economical Pendants
Height4.94 in / 125.4 mm
Width/Diameter4.35 in / 110.5 mm
Carton Height6.75 in / 171.45 mm
Carton Length10 in / 254 mm
Carton Width6.75 in / 171.45 mm
CertificationsCCC, CE, RoHS, UL1480A
Enclosure PropertiesABS Glass Fiber Reinforced, Injection Molded, Sealed
Enclosure Volume60 cu in / 983.22 cu cm
Included AccessoriesCover Plate, Hanging Hardware, Wire Nuts
Optional AccessoriesBlack Grille (GRL-RS31-BK)|Black Split Loom Tubing (AC-SLT-10-BK)
Source InputsTerminal Strip
Shipping Weight3 lbs / 1.36 kg
Coverage Angle (-6dB @ 2kHz) 45°
Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz)4.9 and 7.1
Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz)5.1dB and 8.5dB
Frequency Response (± 10 dB)120 Hz - 22 kHz
Frequency Response (± 3 dB)170 Hz - 14 kHz
Grille PropertiesAluminum, Powder-Coated
Low Frequency Voice Coil0.75 in / 19 mm
Magnetically BoostedNo
Max. Continuous Power RMS20W
Max. Program Power40 W
Mounting Depth3.81 in / 96.8 mm
Nominal Impedance (Ω Ohms)8 Ω
Fullrange Driver3" Polypropylene driver with butyl rubber surround
Sensitivity dB @ 1W/1M85 dB
Sensitivity dB @ 2.83V/1M85 dB
Tap SelectorTerminal Block
Transformer Options25 / 70.7 / 100 V
