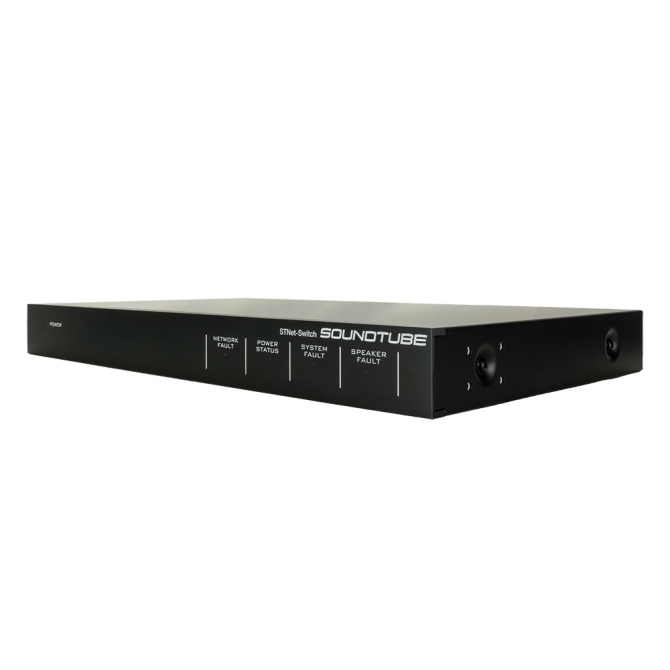

SoundTube STNet®-Switch Amplifier

SoundTube STNet®-Switch Amplifier

Table top or rack mountable 16-port 40w PoE switch. In addition to the 16 Ethernet ports, the STNet-Switch includes two 1Gb ports to connect control DSPs and CobraNet® enabled input devices. The 1Gb ports can also used for linking additional switches. WAN port is also provided for integration with an outside network. The Switch has a built in DHCP server for IP assignment which it uses to identify each end point.

  • Regulatory Approval: UL 60950
  • FW Update Connection: USB
  • 16 port with two non-powered gigabit ports for high speed expansion

  • Owner's Manual   | Applications Guide

    About SolidDrive
    More Information
    Manufacturer's CategorySTNet IP-Addressable and Dante Series
    Depth9.75 in / 247.65 mm
    Height1.75 in / 44.45 mm
    Width/Diameter17 in / 431.8 mm
    Shipping Weight9.7 lbs / 4.4 kg
    Carton Height6 in / 152.4 mm
    Carton Length20 in / 508 mm
    Carton Width13.25 in / 336.55 mm
    CertificationsCE, RoHS, FCC
    Power Requirements110-240 VAC 50/60 Hz
    Magnetically BoostedNo
