June 16, 2022
SubScape 10
SUBSCAPE 10
In stock
Rockustics Outdoor 10" In-Ground Band-Pass Subwoofer
Rockustics Outdoor Subscape 10 Subwoofer

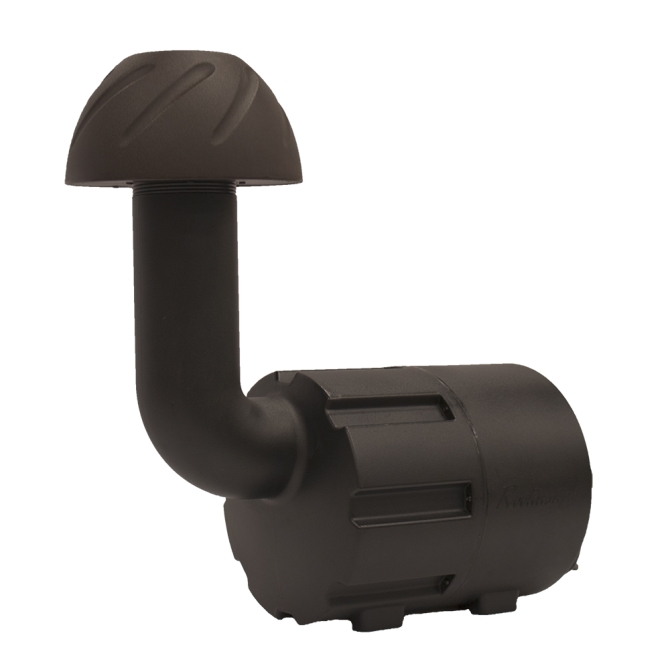

The Subscape 10 is a direct-burial, 10" subwoofer to complement Periscape speakers. With 250 watts (RMS) of power handling, it is an ideal companion to Periscape spike-mount speakers. Once installed, the only visible part of the speaker is a discreet, brown vent cap. One Subscape subwoofer is suitable for installations of up to 7 Periscape units; additional subwoofers are recommended for larger installations. The Subscape 10 may also be used with other Rockustics speakers or other outdoor products. A built-in transformer provides convenience for 70V installations; the subwoofer may also be operated in 8 ohm direct mode. When installed in 8 ohm mode, we recommend the use of the PhaseTech P350 subwoofer amp.
Owner's Manual | Tech Sheet | Escape Series Cut Sheet | Outdoor Solutions Brochure | PDF Drawing | DXF file (zip) | DWG file (zip)
About Rockustics| Color | Brown |
|---|---|
| UPC | 748252173379 |
| Manufacturer | Rockustics |
| Manufacturer's Category | Landscape Speakers |
| Height | 25 in / 635 mm |
| Shipping Weight | 33.55 lbs / 15.22 kg |
| Carton Height | 15 in / 381 mm |
| Carton Length | 26 in / 660.4 mm |
| Carton Width | 23.5 in / 596.9 mm |
| Certifications | CE, RoHS |
| Included Accessories | Wire Nuts |
| Optional Accessories | Brown Top Rock (TOP ROCK MD - B)|Grey Top Rock (TOP ROCK MD - G)|Sandstone Top Rock (TOP ROCK MD - S) |
| TAA Compliant (Trade America) | No |
| BAA Compliant (Made in USA) | No |
| Frequency Response (± 10 dB) | 25 Hz - 150 Hz |
| Frequency Response (± 3 dB) | 32 Hz - 105 Hz |
| Max. Continuous Power RMS | 250 W |
| Max. Program Power | 500 W |
| Minimum Impedance (Ω Ohms) | 8 Ω |
| Nominal Impedance (Ω Ohms) | 8 Ω |
| Subwoofer Driver | 10" Ultra-Long Throw Mica Graphite Poly Cone w/ NBR Surround |
| Sensitivity dB @ 1W/1M | 87 dB |
| Sensitivity dB @ 2.83V/1M | 87 dB |
| Tap Selector | Wire Leads |
| Transformer Options | 70.7 / 100 V, 8 Ohm direct |
