Periscape 6
Rockustics 6.25" 2-way Outdoor Landscape Speaker

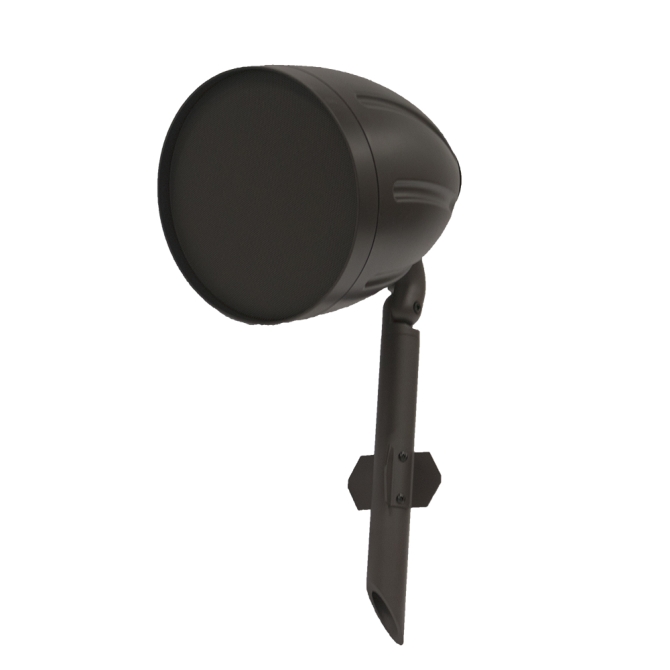

Rockustics Outdoor Periscape 6 Speaker
The Periscape 6 gives you an attractive, discreet way to distribute music and paging throughout an outdoor setting. This 6", 2-way speaker is fully weatherproof and is easily installed via a spike mount. Applications include outdoor living spaces, hotel pool areas, courtyards, outdoor malls, or outdoor seating areas for restaurants or cafes. Systems may be configured with any number of Periscape speakers, with a minimum suggested complement of 4 Periscape units and one Subscape subwoofer; additional subwoofers are recommended for installations using more than 8 Periscape speakers. Escape speakers are available in Brown. All models have 70V transformers with tap settings for 70.7 or 100 V operation; a transformer bypass setting allows operation in 8 ohm direct mode. IP-Rating:IPX5.
Owner's Manual | Tech Sheet | Revit | Escape Series Cut Sheet | Outdoor Solutions Brochure | PDF Drawing
About RockusticsColor | Brown |
---|---|
UPC | 748252172976 |
Manufacturer | Rockustics |
Manufacturer's Category | Landscape Speakers |
Height | 20.5 in / 520.7 mm |
Shipping Weight | 10 lbs / 4.54 kg |
Carton Height | 11.75 in / 298.45 mm |
Carton Length | 13.5 in / 342.9 mm |
Carton Width | 12 in / 304.8 mm |
Certifications | CE, RoHS |
Included Accessories | Mounting Hardware, Wire Nuts |
Optional Accessories | Surface Mount Bracket (AC-RPSMB)|Pole Mount Extension (AC-RPEXT) |
Source Inputs | Wire Leads |
IP Rating | IPX5 |
TAA Compliant (Trade America) | No |
BAA Compliant (Made in USA) | No |
Coverage Angle (±6dB @ 2kHz) | 100° |
Frequency Response (± 10 dB) | 55 Hz - 22 kHz |
Frequency Response (± 3 dB) | 60 Hz - 20 kHz |
Grille Properties | Aluminum, Powder-Coated, Weatherproof |
Max. Continuous Power RMS | 100 W |
Max. Program Power | 200 W |
Minimum Impedance (Ω Ohms) | 8 Ω |
Nominal Impedance (Ω Ohms) | 8 Ω |
Tweeter Driver | 1" Titanium Dome |
Woofer Driver | 6.5" Polypropylene Cone w/ Butyl Rubber Surround |
Sensitivity dB @ 1W/1M | 86 dB |
Sensitivity dB @ 2.83V/1M | 86 dB |
Tap Selector | Rotary Switch |
Transformer Options | 70.7 / 100 V, 8 Ohm direct |
