SubScape 12
Rockustics Outdoor SubScape 12 Subwoofer

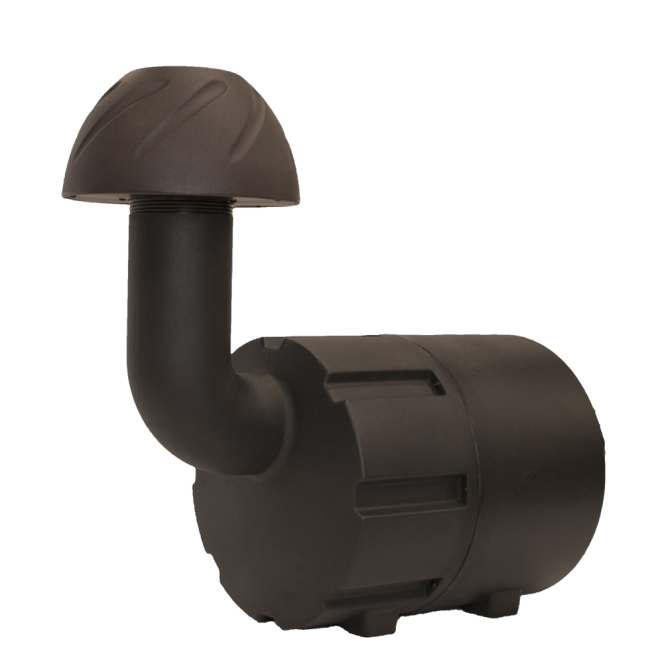

The Subscape 12 is a direct-burial, 12" subwoofer to complement Periscape speakers. With 300 watts (RMS) of power handling, it brings ground-shaking bass response to your outdoor installations and is the perfect companion to Periscape spike-mount speakers. Once installed, the only visible part of the speaker is a discreet, brown vent cap. One Subscape subwoofer is suitable for installations of up to 7 Periscape units; additional subwoofers are recommended for larger installations. The Subscape 12 may also be used with other Rockustics speakers or other outdoor products. A built-in transformer provides convenience for 70V installations; the subwoofer may also be operated in 8 ohm direct mode. When installed in 8 ohm mode, we recommend the use of the PhaseTech P350 subwoofer amp.
Owner's Manual | Tech Sheet | Escape Series Cut Sheet | Outdoor Solutions Brochure | PDF Drawing | DXF file (zip) | DWG file (zip)
About RockusticsColor | Brown |
---|---|
UPC | 748252173386 |
Manufacturer | Rockustics |
Manufacturer's Category | Landscape Speakers |
Height | 25 in / 635 mm |
Shipping Weight | 37.75 lbs / 17.12 kg |
Carton Height | 17 in / 431.8 mm |
Carton Length | 27.5 in / 698.5 mm |
Carton Width | 23.5 in / 596.9 mm |
Certifications | CE, RoHS |
Included Accessories | Wire Nuts |
Optional Accessories | Brown Top Rock (TOP ROCK MD - B)|Grey Top Rock (TOP ROCK MD - G)|Sandstone Top Rock (TOP ROCK MD - S) |
Source Inputs | Wire Leads |
TAA Compliant (Trade America) | No |
BAA Compliant (Made in USA) | No |
Frequency Response (± 10 dB) | 25 Hz - 150 Hz |
Frequency Response (± 3 dB) | 27 Hz - 110 Hz |
Max. Continuous Power RMS | 300 W |
Max. Program Power | 600 W |
Minimum Impedance (Ω Ohms) | 8 Ω |
Nominal Impedance (Ω Ohms) | 8 Ω |
Subwoofer Driver | 12" Ultra-Long Throw Mica Graphite Poly Cone w/ NBR Surround |
Sensitivity dB @ 1W/1M | 87 dB |
Sensitivity dB @ 2.83V/1M | 87 dB |
Tap Selector | Wire Leads |
