SubScape 8

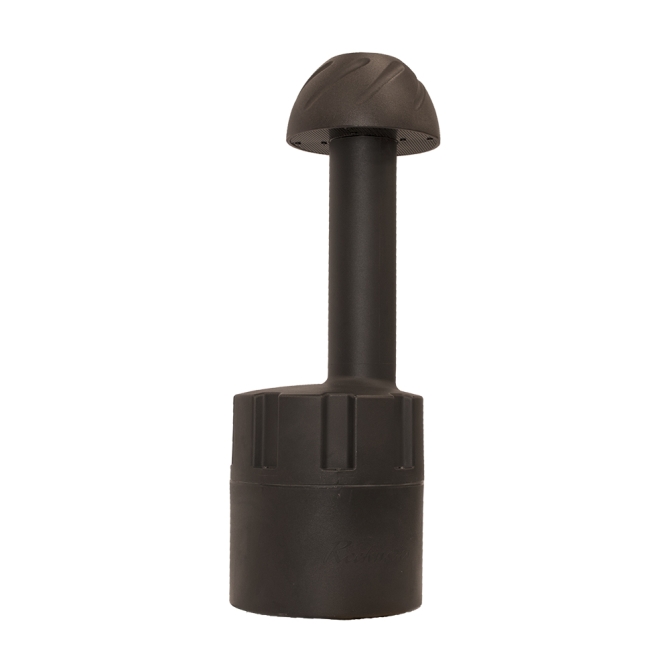

Rockustics Outdoor Subscape 8 Subwoofer
The Subscape8 is a direct-burial, 8" subwoofer to complement Periscape speakers. With 150 watts (RMS) of power handling, it brings strong bass response to your outdoor installations and is the perfect companion to Periscape spike-mount speakers. Once installed, the only visible part of the speaker is a discreet, brown vent cap. One Subscape subwoofer is suitable for installations of up to 7 Periscape units; additional subwoofers are recommended for larger installations. The Subscape 8 may also be used with other Rockustics speakers or other outdoor products. A built-in transformer provides convenience for 70V installations; the subwoofer may also be operated in 8 ohm direct mode. When installed in 8 ohm mode, we recommend the use of the PhaseTech P350 subwoofer amp.
Owner's Manual | Tech Sheet | Escape Series Cut Sheet | Outdoor Solutions Brochure | PDF Drawing | DXF file (zip) | DWG file (zip)
About RockusticsColor | Brown |
---|---|
UPC | 748252173362 |
Manufacturer | Rockustics |
Manufacturer's Category | Landscape Speakers |
Height | 28.5 in / 724 mm |
Width/Diameter | 9.75 in / 247.7 mm |
Shipping Weight | 20.9 lbs / 9.48 kg |
Carton Height | 13 in / 330.2 mm |
Carton Length | 29.75 in / 755.65 mm |
Carton Width | 12.75 in / 323.85 mm |
Certifications | RoHS |
Included Accessories | Wire Nuts |
Optional Accessories | Brown Top Rock (TOP ROCK SM - B)|Grey Top Rock (TOP ROCK SM - G)|Sandstone Top Rock (TOP ROCK SM - S) |
Source Inputs | Wire Leads |
TAA Compliant (Trade America) | No |
BAA Compliant (Made in USA) | No |
Frequency Response (± 3 dB) | 25 Hz - 150 Hz |
Max. Continuous Power RMS | 150W |
Max. Program Power | 300 W |
Minimum Impedance (Ω Ohms) | 8 Ω |
Nominal Impedance (Ω Ohms) | 8 Ω |
Subwoofer Driver | 8" Polypropylene Cone w/ Butyl Rubber Surround |
Recommended Power | 150 W |
Sensitivity dB @ 2.83V/1M | 87 dB |
