CI150
PhaseTech 5.25" 2-way In-Wall Speaker
PhaseTech CI150 In-Wall Speaker
5.25 inch 2-Way In-Wall LCR Speaker With Patented Positive Clamping Mounting System. The CI150 is unique in that it combines the front left and right channels with the center channel in two cabinets instead of the normal three. Dual drivers and tweeters offer superb sound quality for all three front channels from just two speakers, producing the same sweeping soundstage as the finest multi-channel movie theater all while providing discreet three-channel performance out of only two speakers. The upper portions of both speakers handle the dedicated left and right content, but the lower portions of each CI150 act as discreet mono center channels which are then fed the same center mix from your source, collapsing the sound into a center image. This creates the illusion that there is a center channel speaker right in the middle of your left and right speakers. This unique in-wall features patented triple 5.25 inch tri-laminate Kevlar/RPF™/Glass Fiber flat-piston woofers (patent #4566178) and dual 1 inch user-adjustable, variable-axis soft dome tweeters. Proprietary mounting systems are included for the on-wall and flush-mount in-wall systems. The CI150 eliminates the need for a separate center channel and its paintable finish won't interfere with interior design. The CI150 pairs with Premier Collection's PC1.5 and PC33.5.
About PhaseTechColor | White |
---|---|
UPC | 644216205301 |
Manufacturer | Phase Technology |
Manufacturer's Category | CI Custom Install Series |
Depth | 4.25 in / 108 mm |
Height | 31.37 in / 796.9 mm |
Width/Diameter | 8.13 in / 206.4 mm |
Shipping Weight | 22.45 lbs / 10.18 kg |
Carton Height | 8.25 in / 209.55 mm |
Carton Length | 36 in / 914.4 mm |
Carton Width | 12.5 in / 317.5 mm |
Enclosure Properties | Sealed |
Included Accessories | Grille, Hole Template, Mounting Assembly |

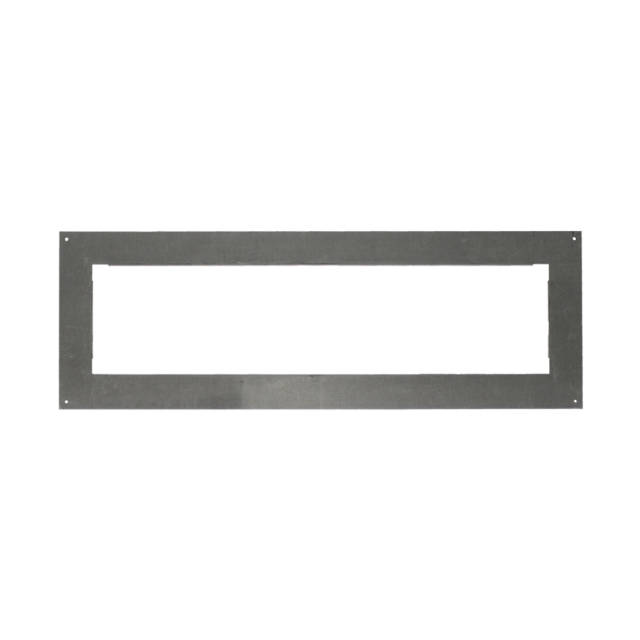

Optional Accessories | Rough-In Bracket (RB19) |
Source Inputs | Terminal Strip |
Cutout Depth | 3.87 in / 98.4 mm |
Cutout Width/Diameter | 7 in / 177.8 mm |
Frequency Response (± 3 dB) | 55 Hz - 22 kHz |
Grille Properties | Standard-Flange, Friction-Fit, Galvanized, Powder-Coated, White, Paintable, Steel |
Max SPL @ 1M | 114 dB |
Nominal Impedance (Ω Ohms) | 4 Ω |
Tweeter Driver | (2) 1" Variable Axis Soft Dome w/ Unicell Acoustic Treatment |
Woofer Driver | (3) 5.25" RPF® Flat-Piston Fiberglass & Kevlar Composite Cone w/ NBR Surround |
Recommended Power | 15-200 W |
Sensitivity dB @ 2.83V/1M | 90 dB |
